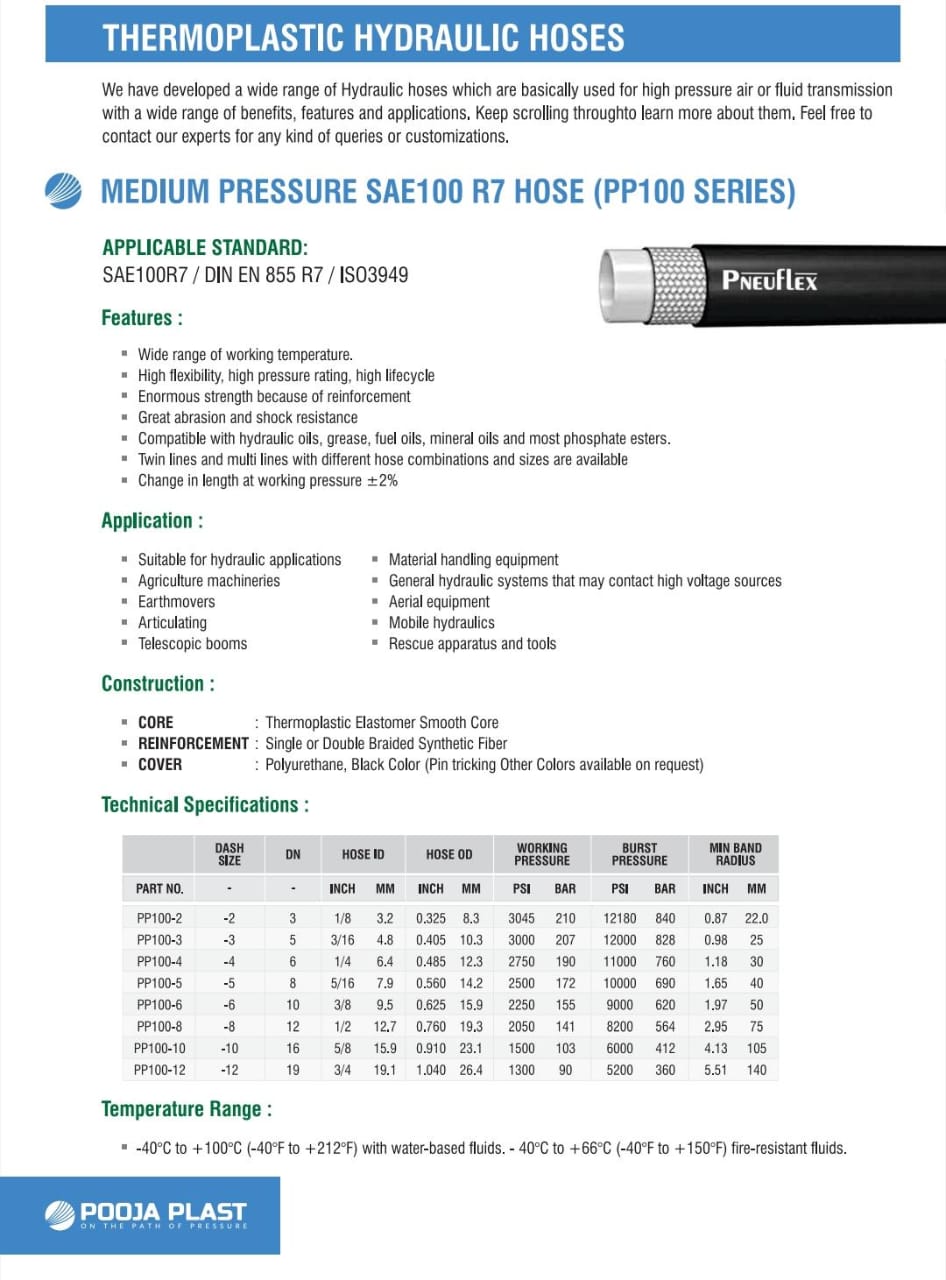

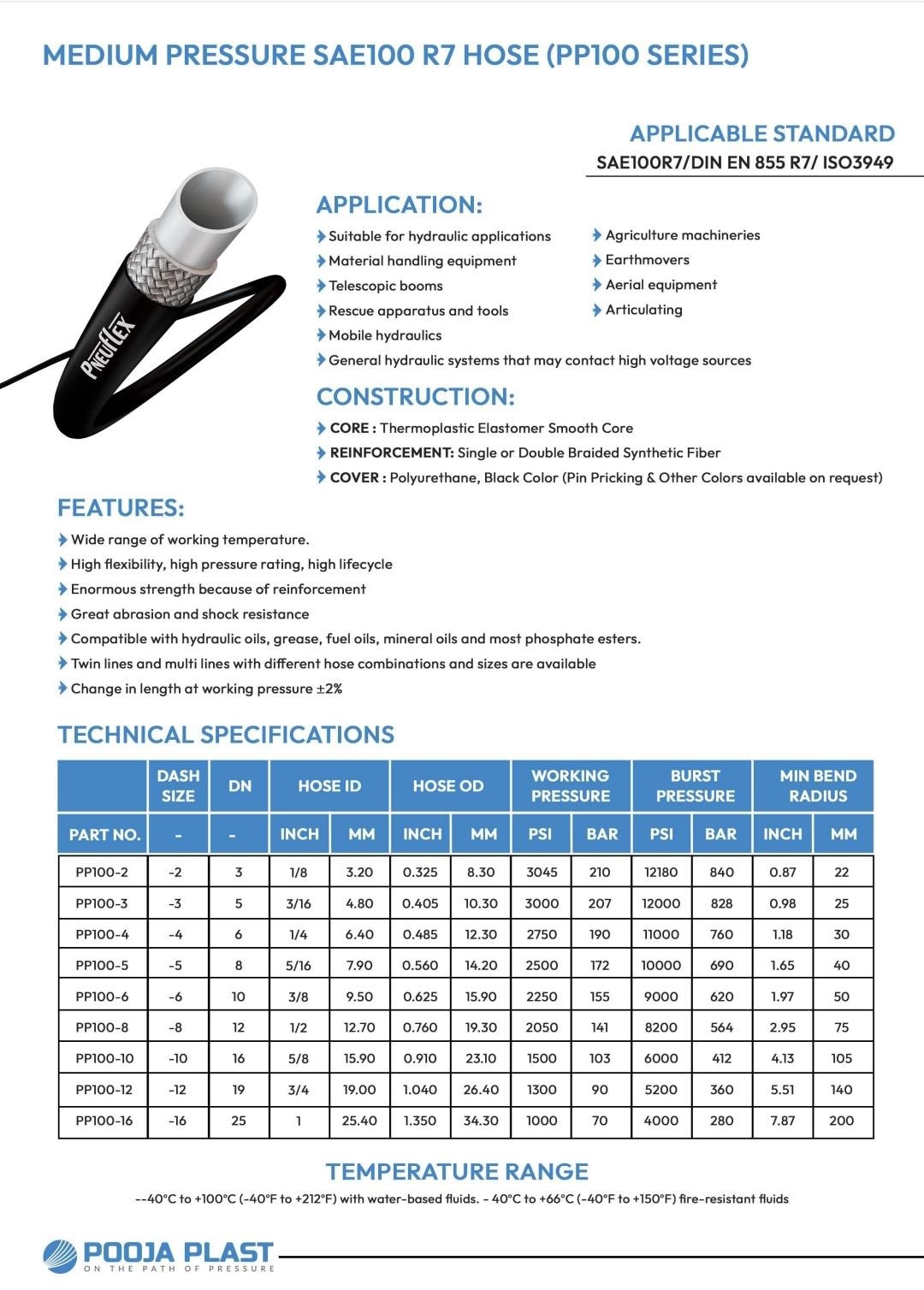

MEDIUM PRESSURE SAE100 R7 HOSE

MEDIUM PRESSURE SAE100 R7 HOSE Manufacturer:

SAE100 R7 thermoplastic hydraulic hose is suitable for synthetic, petroleum or water- based hydraulic fluids transmission. It has wide working temperature range of -40°C to +100°C (-40°F to +212°F). It is available in both conductive and non conductive form. The core tube material makes it oil resistant making the hose widely used in delivering synthetic, petroleum or water-based hydraulic fluids. Change in length at working PSI±2%.

FEATURES:

Wide range of working temperature.

High flexibility, high pressure rating, high life cycle

Enormous strength because of reinforcement

Great abrasion and shock resistance

Available in both nonconductive and conductive materials.

Compatible with hydraulic oils, grease, fuel oils, mineral

oils and most phosphate esters.

Increased resistance to abrasion.

APPLICATIONS:

Suitable for hydraulic applications

Agriculture machineries

Earthmovers

Articulating

Telescopic booms

Material handling equipment.

General hydraulic systems that may contact high voltage sources

Aerial equipment

Mobile hydraulics

Rescue apparatus and tools

Electric utility truck

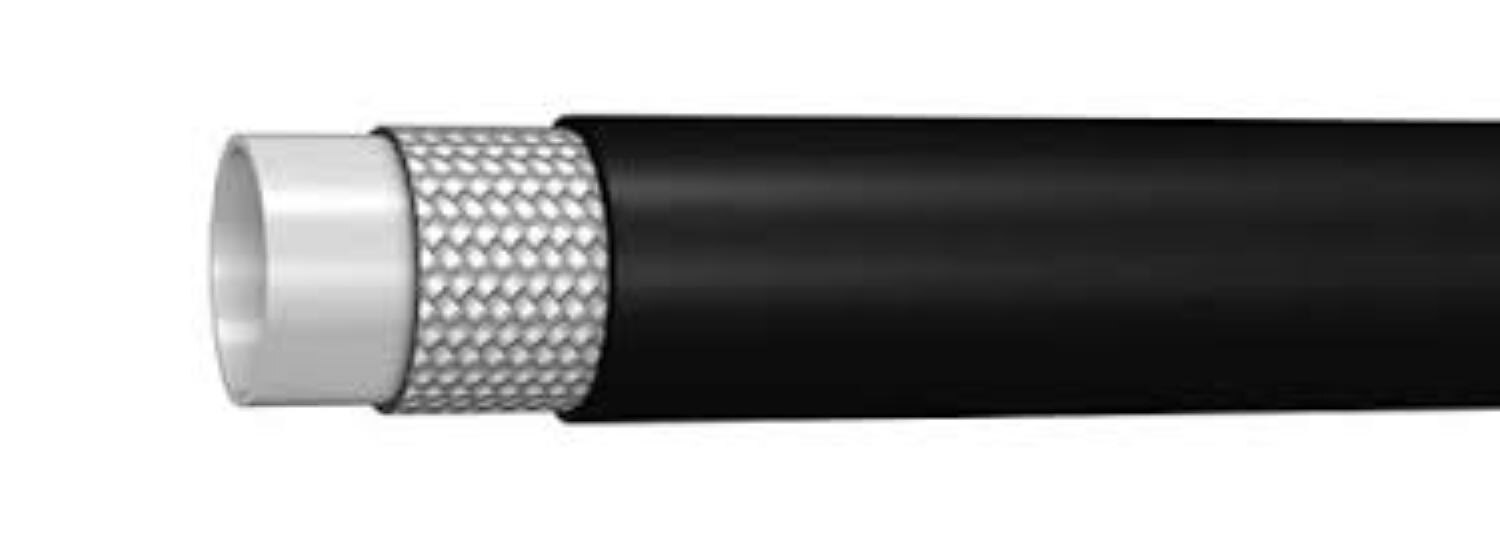

CONSTRUCTION:

Core: Thermoplastic Elastomer Smooth Core

Reinforcement: Single or Double Braided Synthetic Fiber

Cover: Polyurethane, Black Color, Pin pricked (Other Colors available on requirements)
