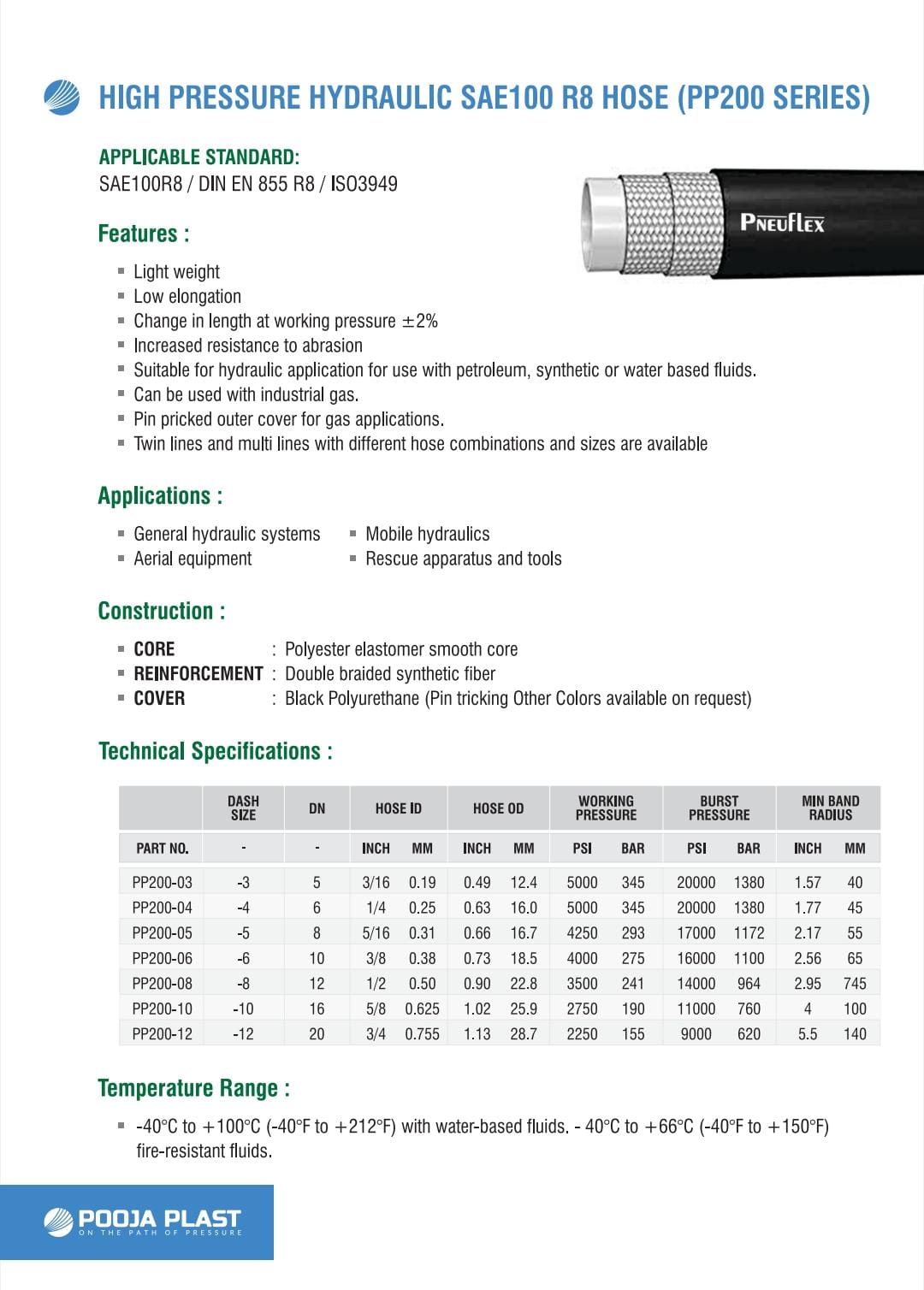

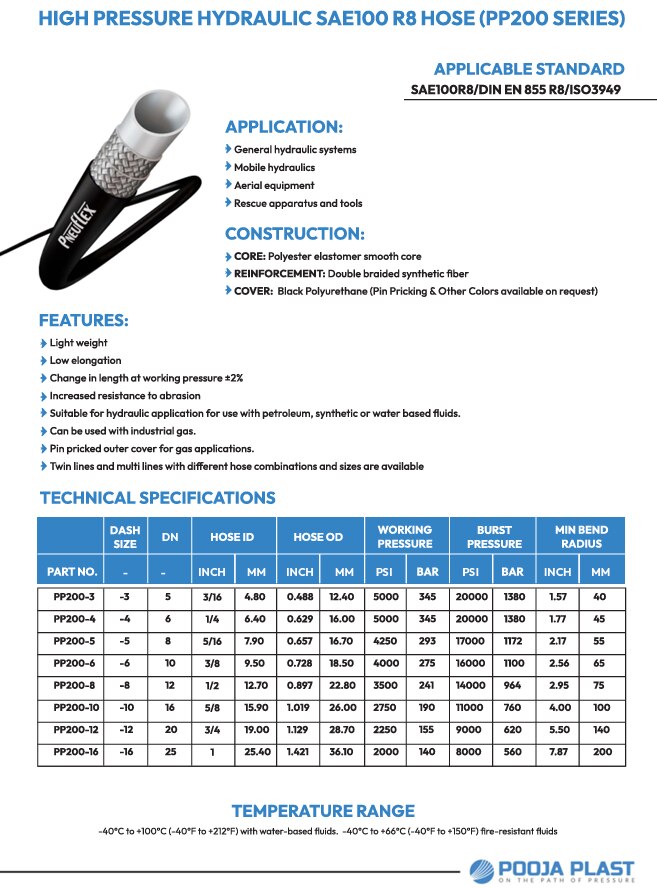

HIGH PRESSURE HYDRAULIC SAE100 R8 HOSE

SAE100 R8 HOSE MANUFACTURER:-

Temperature Range : -40°C to +100°C (-40°F to +212°F). – 40°C to +66°C (-40°F to +150°F) with water-based or fire resistant fluids change in length at working PSI ±2%.

FEATURES:

Meets or exceeds SAE 100R8 specifications

Light weight

Low elongation

Increased resistance to abrasion

Suitable for hydraulic application for use with

petroleum, synthetic or water based fluids.

Can be used with industrial gases.

Pin pricked outer cover for gas applications.

APPLICATIONS:

General hydraulic lines with operating pressure 210 to 350 bar

Material handling

Agricultural Machinery

Chemical transfer

Marine steering

Earth moving

Safety and Rescue Equipment

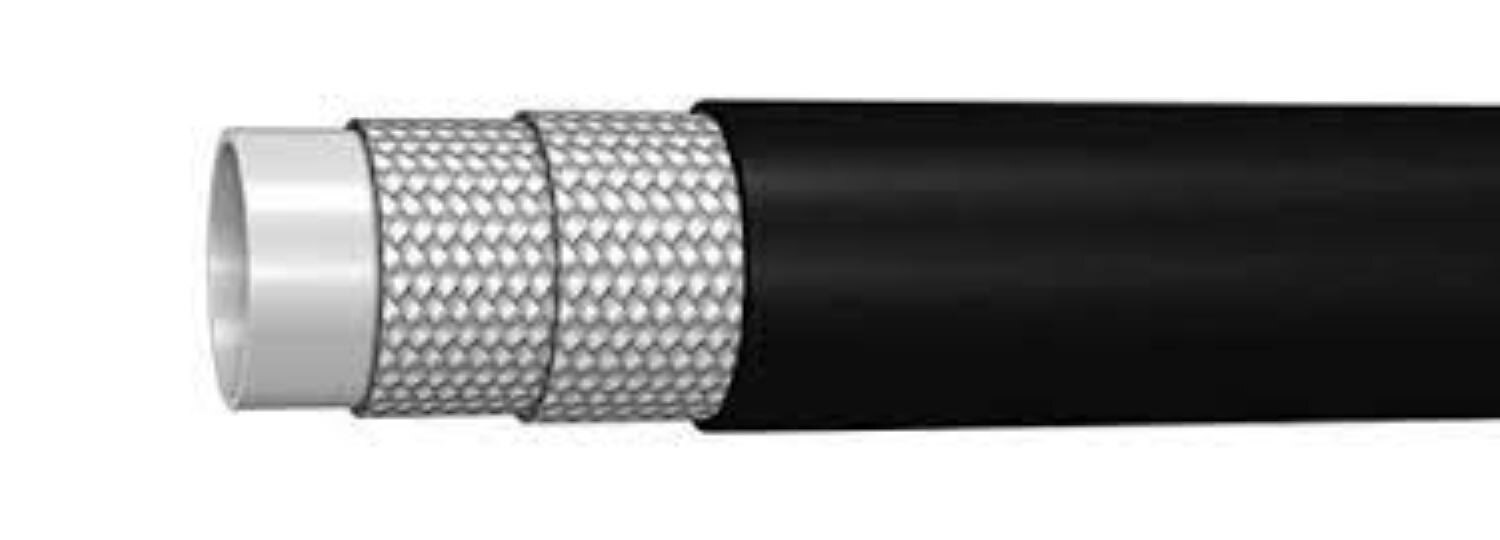

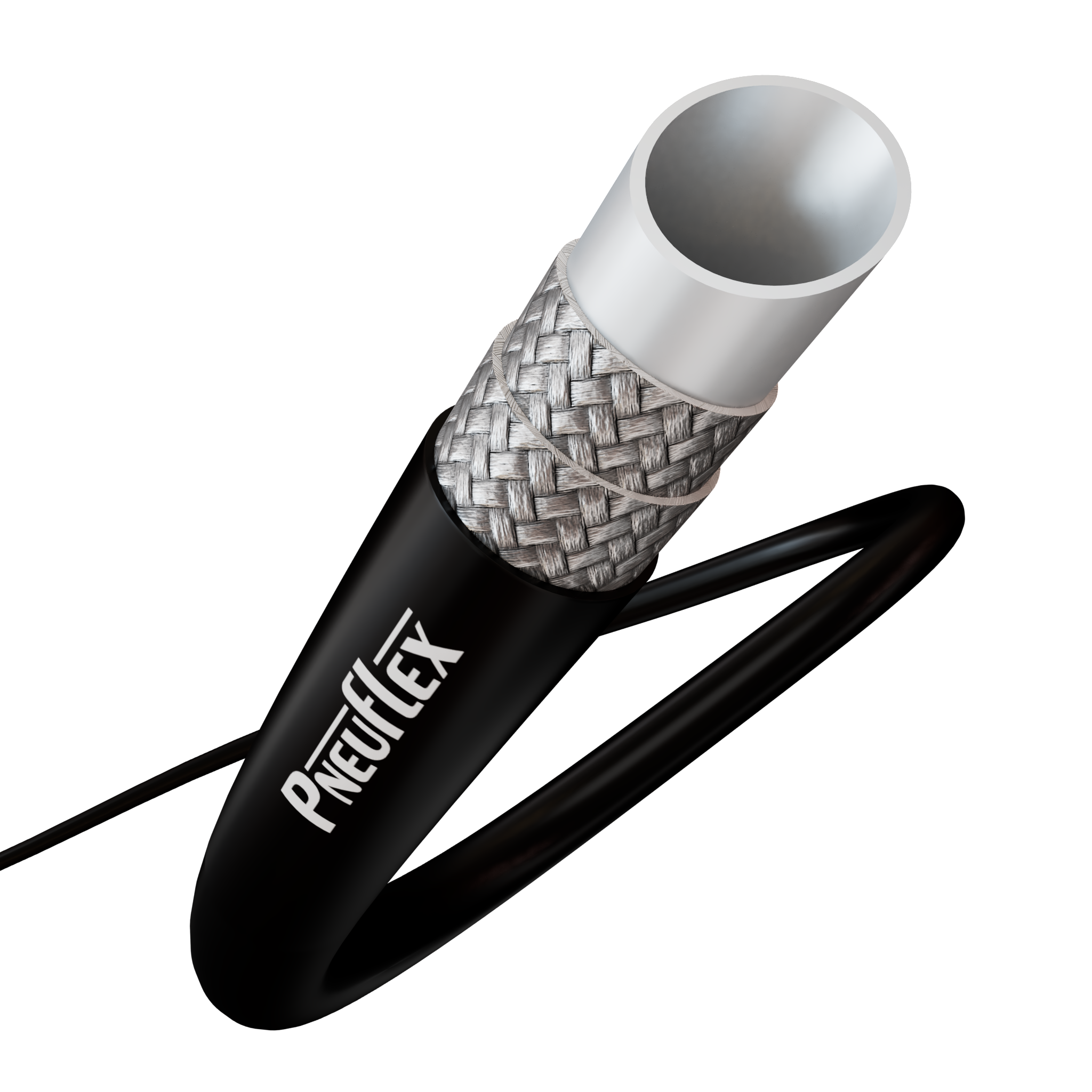

CONSTRUCTION:

Core: Polyester elastomer smooth core.

Reinforcement: Single or Double braided High Tensile Aramid fiber.

Cover: Polyurethane, Black Color, Pin pricked (Other Colors available on requirements).
