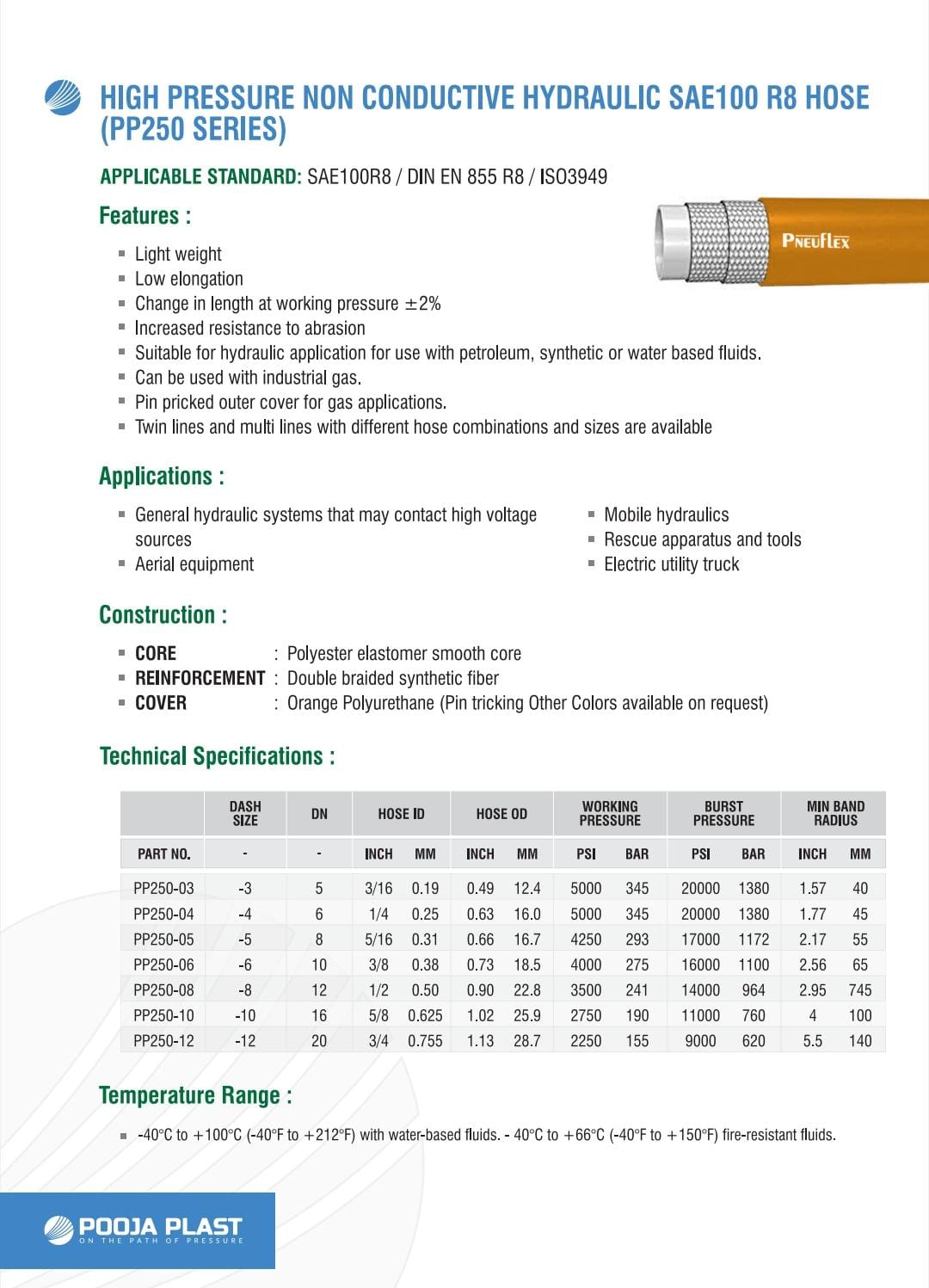

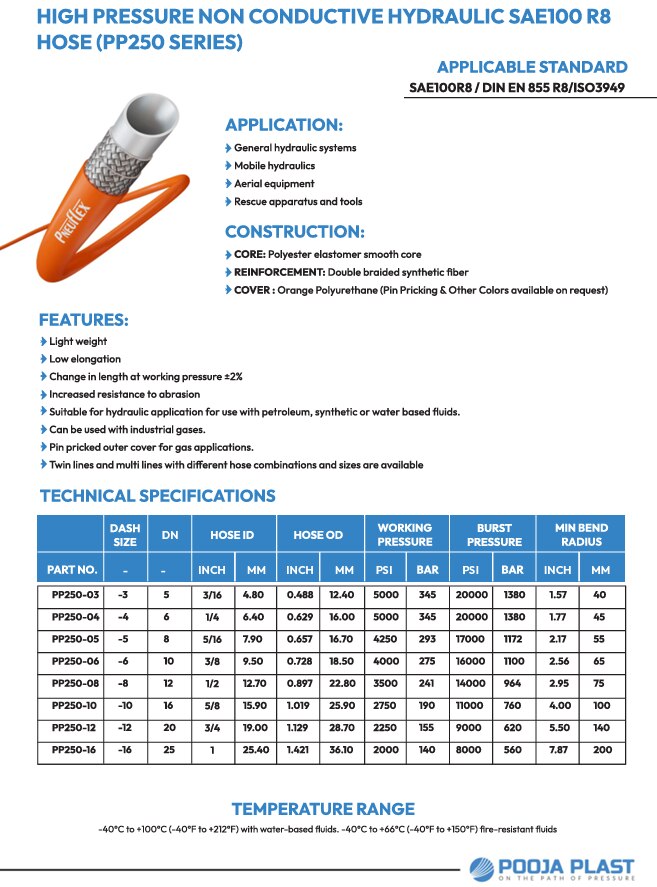

HIGH PRESSURE NON CONDUCTIVE HYDRAULIC SAE100 R8 HOSE
Description
HIGH PRESSURE NON CONDUCTIVE HYDRAULIC SAE100 R8 HOSE Manufacturers
Temperature Range: -40°C to +100°C (-40°F to +212°F). – 40°C to +66°C (-40°F to +150°F) with water-based or fire-resistant fluids. Change in length at working PSI ±2%
FEATURES:
Meets SAE 100 R8 specifications
Light weight
Low elongation
Increased resistance to abrasion
Suitable for hydraulic application for use with petroleum,
synthetic or water-based fluids.
Can be used with industrial gases.
Pin pricked outer cover for gas applications.
APPLICATIONS:
General hydraulic systems that may contact high voltage sources
Aerial equipment
Mobile hydraulics
Rescue apparatus and tools
Electric utility truck

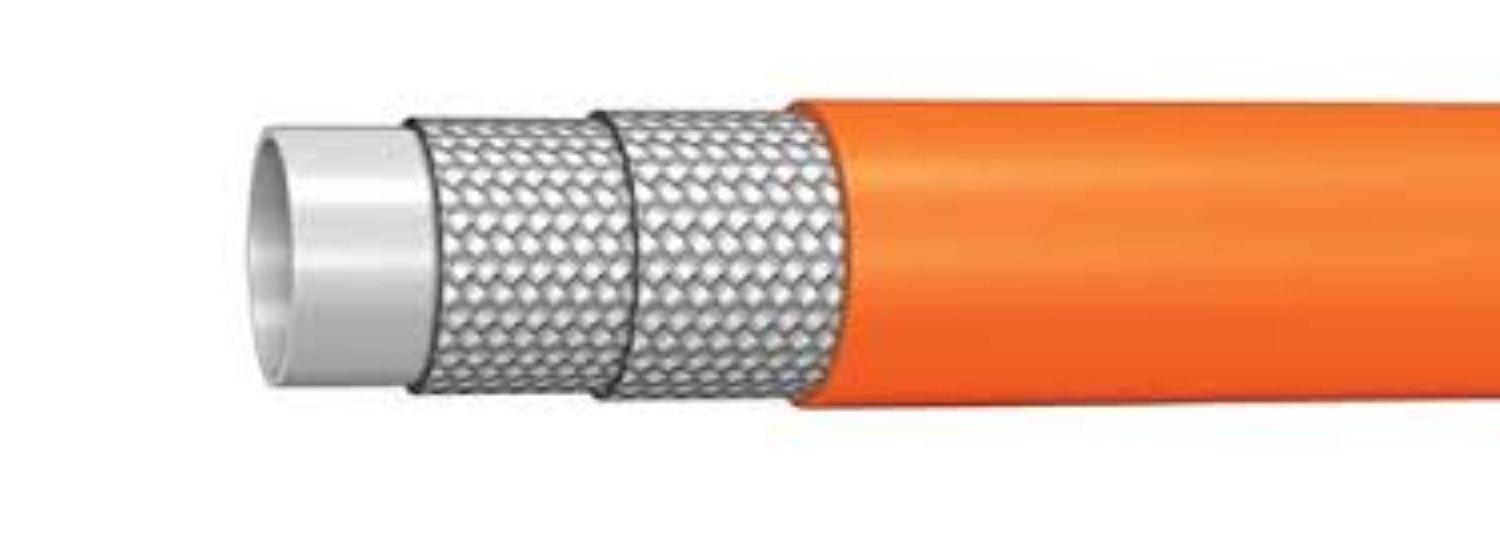

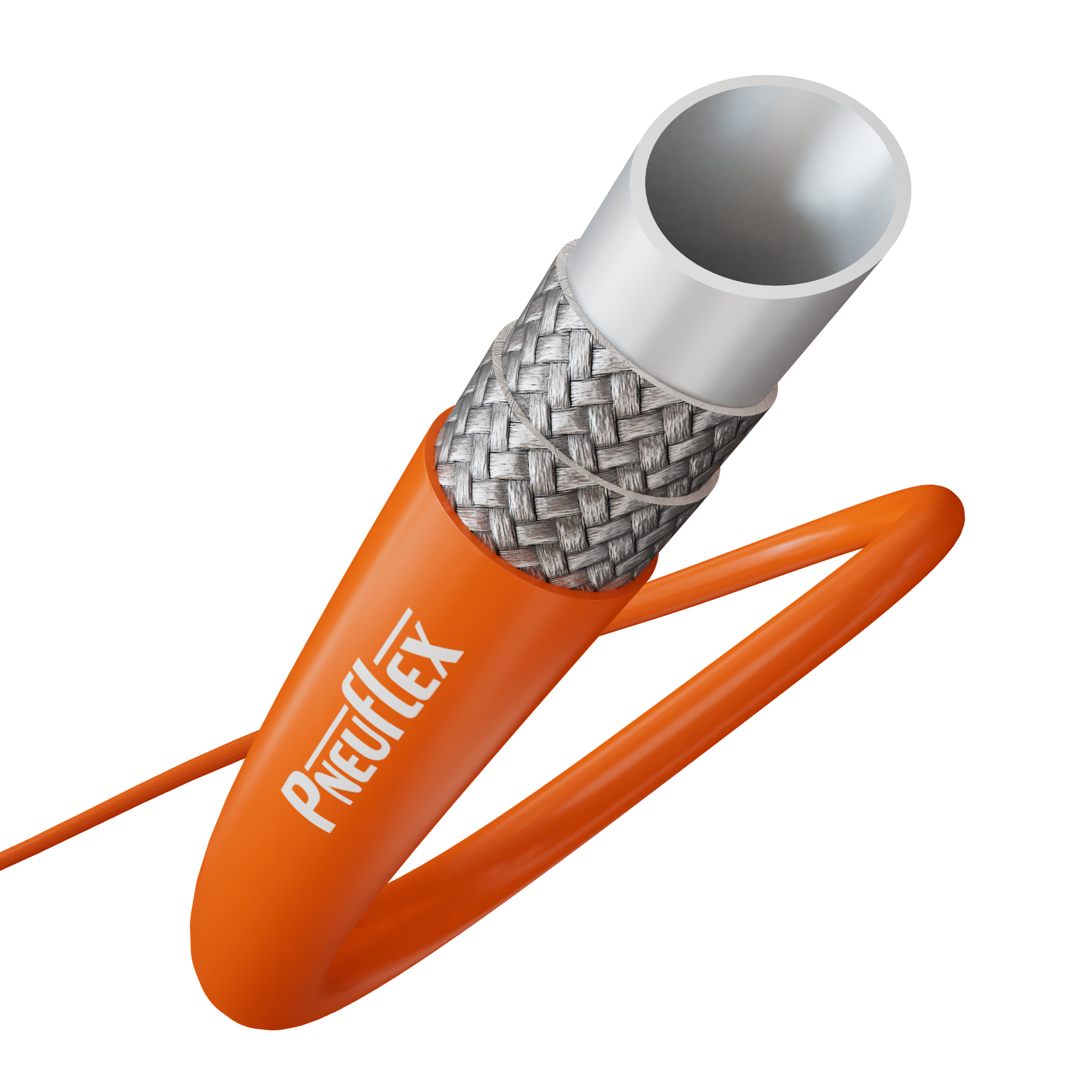

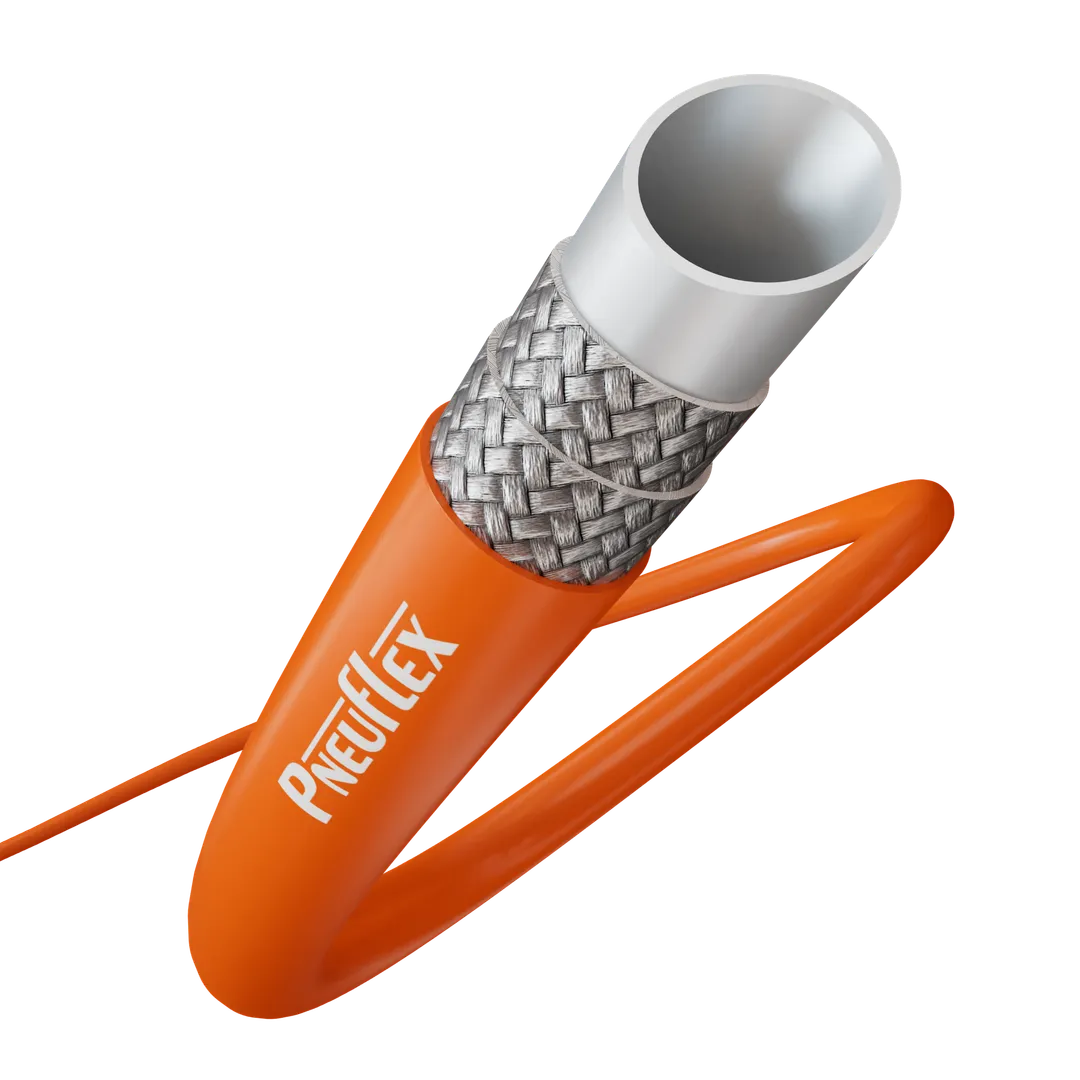

CONSTRUCTION:
Core: Polyester elastomer smooth core
Reinforcement: Double braided synthetic fiber
Cover: Orange Polyurethane ( Pin Pricking, Other colors available on request)
